Function

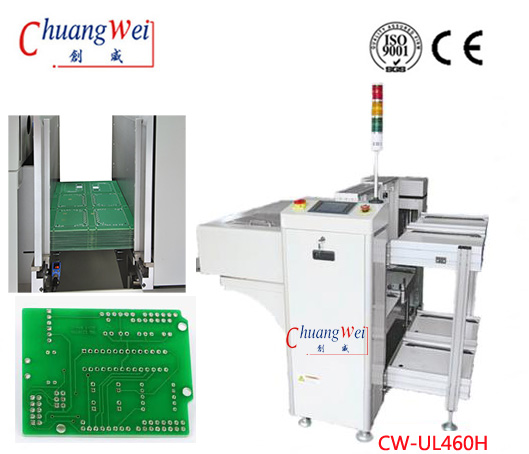

This equipment is used to collect PCBs into magazine at the end of SMT production line

PCB loading time

Approx 6seconds

Magazine change-over time

Approx 30 seconds

Power supply

100-230V AC (customized), single phase, MAX 300V/A

Air pressure

4-6 bar, MAX 10L/minute

Transport height

900±20mm (or customized)

Transport direction

Left to right / right to left(optional)

PCB thickness

Min 0.6mm

Magazine number

transport up: 1pcs, transport down: 1pcs,(or customized)

Step pitches select

1-4(10mm step pitches)

Model No

GW-UL460H

PCB size (L×W)～(L×W)

(50x50)～(530x460)

Machine size (L×W×H)

2210×1870×1200

Magazine size (L×W×H)

535×530×570

weight

250kg
