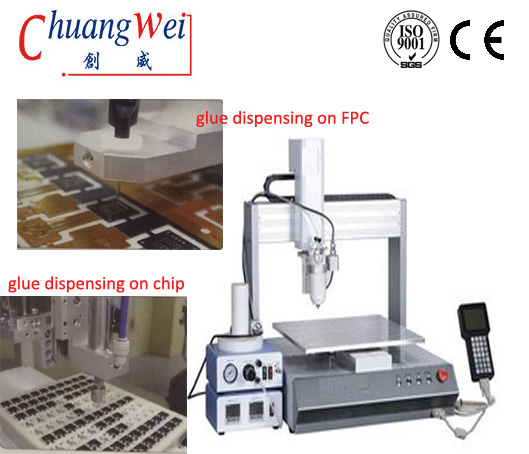

UV Glue Dispensing Robot Machine For iPhone Bezel,CW-7000N

Product description: UV Glue Dispensing Robot Machine For iPhone Bezel,CW-7000N
INQUIRY

CW-7000N Series Automatic Dispensing Robots Robotic Dispensing Systems：

Working Temperature:	0~40°C	Working Relative Humidity:	20~90% No Condensation
Repeat ability:	+/- 0.01mm / Axis	Interpolation Function::	3 Axis
I/O Signals Port:	8 Inputs / 8 Outputs	Trade Term::	EXW

Glue Dispenser-Glue Dispensing Systems Description:

Multiple-axis system and on line dispensing arm which provides a highly reliable operation and good repeat ability.

Multiple-axis system which can simple programming for point, stripes, arc, composite curve, and different

patterns.

This machine can set up quickly and easy to operate, can save more more time for other projects so

that help to increase production.

UV Glue Dispensing Robot Machine For iPhone Bezel,CW-7000N Specifications：

Item	CW-7200N		CW-7300N	CW-7400N		CW-7500N	CW-7300S	CW-7400S		CW-7500S
Working Ares: X/Y/Z mm	200/200/50		300/300/100	400/400/100		400/400/100	300/300/100	400/400/100		500/500/100
Max Load Y/Z Axis	5kg / 3kg		11kg / 6kg				15kg / 8kg
Speed X&Y/Z	500/350 mm/s		800/500 mm/s				500/350 mm/s
Repetitive Positioning Accuracy	+/- 0.02mm/Axis		+/- 0.01mm / Axis				+/- 0.01mm / Axis
Program Capacity	At least 100 groups, 4000 points / Group
Date Storage Type	CF Card
Byte	32 Bit
Program Display	LCD
Motor System	2phase stepping motor				3phase stepping motor				Servo Motor
Transmission Mode	Synchronous Belt				X/Y Synchronous Belt, Z ball screw				Precision Ball Screw
Interpolation Function	3 Axis
Programming Mode	Teach Pendant
I/O Signals Port	8 Inputs / 8 Outputs
External Control Interface	RS232
Power Supply	AC 100~230V 300W
Working Temperature	0~40°C
Working Relative Humidity	20~90% no condensation
Dimensions: mm	385/380/500	485/505/610		585/610/610		685/700/670	485/505/610	585/610/610		685/700/670
Robot Weight	23kg	34kg		41kg		52kg	50kg	55kg		70kg

UV Glue Dispensing Robot Machine For iPhone Bezel,CW-7000N Features:

Easy to program;
Reduce the process time so that to help increase production;
Fully integrated positioning and dispensing function;
The perfect integration of dispensing and positioning function.

Application to:

The application in filling, adhesive, moulding and sealing which need to inject adhesive and sealant.
