  • PCB ic Chips Dispensing Glue SMT Production Line Black Glue,CW-AB

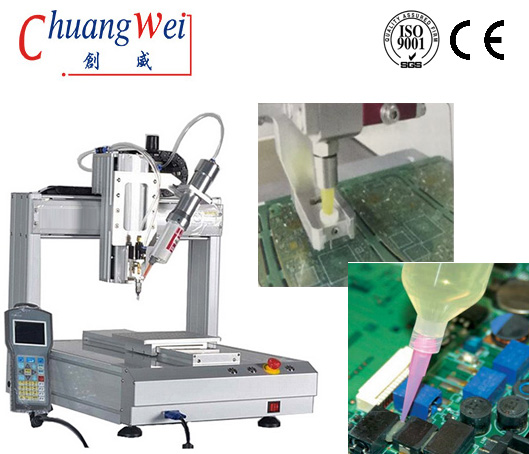

PCB ic Chips Dispensing Glue SMT Production Line Black Glue,CW-AB

PCB ic Chips Dispensing Glue SMT Production Line Black Glue,CW-AB

  • Product description: PCB ic Chips Dispensing Glue SMT Production Line Black Glue,CW-AB
  • INQUIRY

PCB ic Chips Dispensing Glue SMT Production Line Black Glue,CW-AB Features:

1.English hand held LCD screen operation, easy programming, easy to learn and understand;

2.with a draw point, line, surface, arc, circle. Irregular curve continuous tween and other functions, to achieve any 3D non-planar trajectory path

3.excellent teaching function. Support array, graphical browsing, 3D oval, common graphics library insert, group editing and other advanced features

4.large capacity 2G high-speed Mini SD file memory, can store 999 dispensing process files

5.the amount of plastic size, glue speed, dispensing time, time can be set to stop the parameters set

6.with a special dispensing controller, the amount of glue stability, broken plastic clean, do not leak dispensing

7. with automatic anti-curing function, effectively prevent glue curing plug the needle



PCB ic Chips Dispensing Glue SMT Production Line Black Glue,CW-AB Specifications:

Parameters

Model

Parameter values

Effective stroke of XYZ Axis

CW-221

200*200*100

CW-331

300*300*100

CW-441

400*400*100

CW-551

500*500*100

Other

Other sizes can be made to order

Y / Z Axis Max Load

10Kg/5Kg

Power Supply

110V-220V

Control method

Teaching Box

Repeat ability positioning accuracy

± 0.02mm

XYZ Axis motion speed

500mm/Sec

Machine material

Made of aluminum alloy

Use temperature as

5-40 ºC

Field humidity

20%-90%

Transfer method

Timing belt or screw

Sample Glue Type:

PCB ic Chips Dispensing Glue SMT Production Line Black Glue,CW-AB Application:

For electrical appliances, electronics, LED lighting and other industries AB glue dispensing
