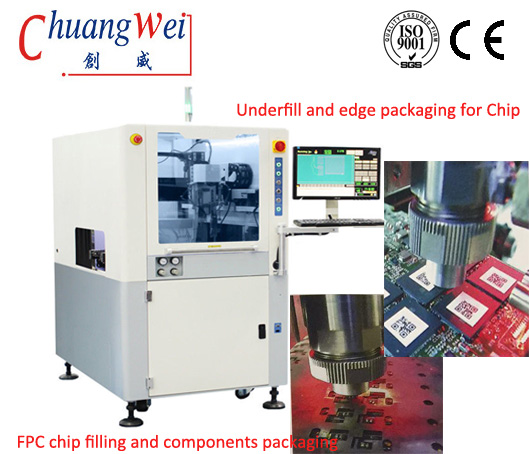

IPC Spray Coating Machine,Electrostatic Coating Machinery,CWCC-3L

Product description: IPC Spray Coating Machine,Electrostatic Coating Machinery,CWCC-3L
INQUIRY

IPC Spray Coating Machine,Electrostatic Coating Machinery,CWCC-3L Features:
1.Motion controller use computer+,WINDOWS operating system, failure alarming menu;
2.Available by manual teaching programming which is easy and quick;
3.Integral steel moving platform, to ensure the smooth running;
4.X, Y, Z three-axis motion;
5.Servo motor+ball screw drive;
6.Run precision of 0.02mm,automatically eliminate difference;
7.Nozzles automatic cleaning device;
8.Special aluminum alloy rail and stainless steel conveyor chain;
9.Independent material container;
10.Equip with gas collection, exhausting devices;
11.SMEMA port to connect with other devices.

IPC Spray Coating Machine,Electrostatic Coating Machinery,CWCC-3LTechnical Parameters:

Model	CWCC-3L
External Size LW H	101013601675mm(LWH)
Weight	500KG
Control Mode	IPC+control card
Software	CW software+Windows
Programming	Teaching box
Axis	X,Y,Z
Drive	Servo motor +ball screw
Max. move speed	800mm/s
Coating scope	L580*W580mm
Max .PCB height	up 90 down 90mm
Rotation angle	±180º
Positioning accuracy	0.02mm
Repeat accuracy	0.02mm
Conveyor quantity	1
Width adjusting mode	auto
Width adjust speed	250mm/min
Conveyor height	900±20mm
Conveyor speed	2-5mm/min
Conveyor direction	L-R(R-L optional)
PCB edge space	≧5mm
Conveyor motor power	DC24V 69W
Communication port	SMEMA port
Nozzle quantity	2 sets
Nozzle type	pin type spray nozzle,film nozzle
Tilt angle	0~35º
Single coating width	2-30mm(According to the selected value)
Material volume	5L
Draft capacity	15 m³ /min
Power supply	AC220V 50/60Hz
Total power	2.2KW
Pressure	0.4Mpa
Programming panel	Standard
Material Detection	Standard
Camera location	Standard
Clamp device	Standard
Bar code	Standard
UPS	Standard
Waste recycling	Standard

IPC Spray Coating Machine,Electrostatic Coating Machinery,CWCC-3L :

Tilt for coating

Can equipped with 2 sets of nozzle.
It can choose 3 from 5 that SA-W5, SA-W3,DJ-01, LA-W30, SC-W10
2 of them can be 35° tilt to achieve 5 axis working. The nozzle can down 75mm, and 3 nozzles can switch arbitrarily. The whole holder can be 360° rotation which can make high efficiency accuracy no-dead corner.
