Import Data and Price of Glue Dispensing Machine under Bar Code,CWDJ-311

Product description: Import Data and Price of Glue Dispensing Machine under Bar Code,CWDJ-311
INQUIRY

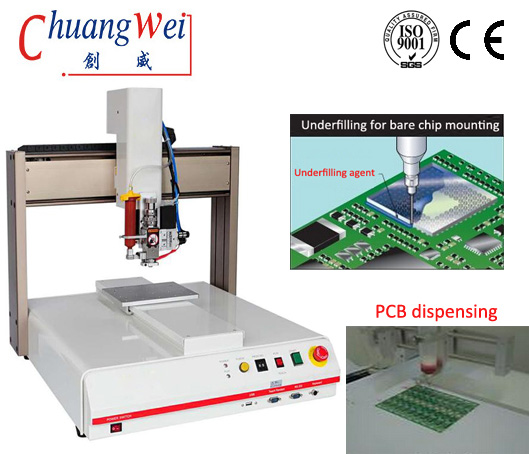

Specification for Desktop Automatic Glue Dispenser :

Working area X/Y/Z(mm)	400/400/100
Load Y Axis / Z Axis	10kg / 5kg
Program Display	Teach Pendant LCD
Programming Method Power Supply	Teach Pendant AC110~220V300W
Working Temperature	10~40°c
Working Relative Humidity	20~90% no condensation
Dimensions(W x D x H)	585 x 610 x 610
X&Y/Z(mm/sec)	0.1~800/500
Resolution	0.01mm / Axis
Repetitive Positioning Accuracy	±0.01mm/Axis
Program Capacity	Min 100 group, 4000points/group
Data Storage Type	CF Card
Motion Control	PTP(Point to Point) & CP(Continuous Path)
Motor System	Micro Stepping motor
Interpolation Function	3 Axis(Suit for 3D requirement)
I/O Signals Port	8 Inputs / 8 Outputs
Robot Weight (kg)	41kg

1.The most popular design is the Cartesian coordinate robot arm

2.Through the teaching box operation, with a movement between the functions, all axes can be straight or circular arc dispensing

3.Three axis design, software powerful, easy to operate, easy to set procedures,

4.the use of teaching box input, easy to learn, you can do RBI, painting line, arc and other glue action

5.Accessories easy to match, in order to achieve the most accurate and complete application of glue.

6.Scope of application, such as: relay package, mobile phone button dispensing, mobile phone battery packaging, notebook battery packaging, coil dispensing, PCB board binding sealant, IC sealing glue, horn outer ring dispensing, PDA sealing, LCD sealing glue and so on

Application to:

The application in filling, adhesive, moulding and sealing which need to inject adhesive and sealant.
