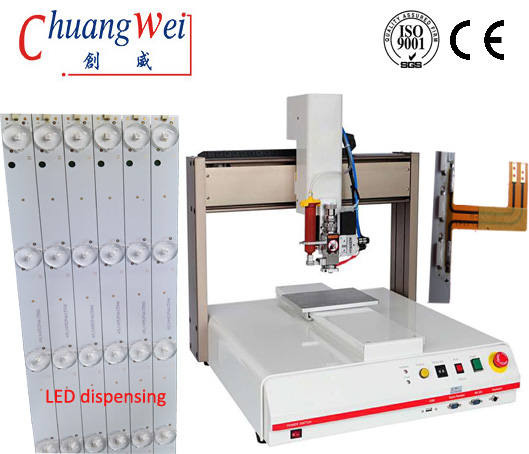

FPC & LED LCD SMTGlue Dispensing Machine,CWDJ Specification:
|
Working area X/Y/Z(mm) |
400/400/100 |
|
Load Y Axis / Z Axis |
10kg / 5kg |
|
Program Display |
Teach Pendant LCD |
|
Programming Method Power Supply |
Teach Pendant AC110~220V300W |
|
Working Temperature |
10~40°c |
|
Working Relative Humidity |
20~90% no condensation |
|
Dimensions(W x D x H) |
585 x 610 x 610 |
|
X&Y/Z(mm/sec) |
0.1~800/500 |
|
Resolution |
0.01mm / Axis |
|
Repetitive Positioning Accuracy |
±0.01mm/Axis |
|
Program Capacity |
Min 100 group, 4000points/group |
|
Data Storage Type |
CF Card |
|
Motion Control |
PTP(Point to Point) & CP(Continuous Path) |
|
Motor System |
Micro Stepping motor |
|
Interpolation Function |
3 Axis(Suit for 3D requirement) |
|
I/O Signals Port |
8 Inputs / 8 Outputs |
|
Robot Weight (kg) |
41kg |
FPC & LED LCD SMTGlue Dispensing Machine,CWDJ Features:
1.The most popular design is the Cartesian coordinate robot arm
2.Through the teaching box operation, with a movement between the functions, all axes can be straight or circular arc dispensing.
3.Three axis design, software powerful, easy to operate, easy to set procedures,
4.the use of teaching box input, easy to learn, you can do RBI, painting line, arc and other glue action
5.Accessories easy to match, in order to achieve the most accurate and complete application of glue.
6.Scope of application, such as: relay package, mobile phone button dispensing, mobile phone battery packaging, notebook battery packaging, coil dispensing, PCB board binding sealant, IC sealing glue, horn outer ring dispensing, PDA sealing, LCD sealing glue and so on.
FPC & LED LCD SMTGlue Dispensing Machine,CWDJ Application to:The application in filling, adhesive, moulding and sealing which need to inject adhesive and sealant.
