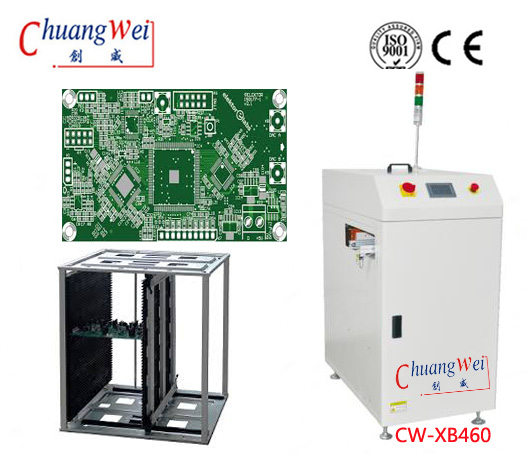

Vacuum Loader for Aluminum PCB PWB,CW-XB460

Product description: Vacuum Loader for Aluminum PCB PWB,CW-XB460
INQUIRY

Vacuum Loader for Aluminum PCB PWB,CW-XB460 Product Instruction:

※PLC control system, working is stably and reliably;
※Easy to operate touch screen control interface;
※Enclosed design ensure the highest security level;

※ Top safety cover can be opened, the handling of the machine easy to maintain the hardware;

※ Agility sucker design, position adjustable;

※ The solid balance device of adjusting the width (Hand control screw adjustment);

※ Small machine footprint;

※Machine always fault monitoring;

※Optional pass working mode;
※ SMEMA port is compatible.

Vacuum Loader for Aluminum PCB PWB,CW-XB460 Technical Parameter:

Function	This equipment is used for the operation of bare PCB loading in the line
Max PCB’s capacity	300pcs (0.6mm thickness PCB)
cycling time	Approx 8 seconds
Power supply	100-230V AC (customized), single phase
Power load	MAX 180 VA
Air pressure	4-6 bar
Air volume	MAX 30L/minute
Transport height	900±20mm (or customized)
Transport direction	Left to right/right to left(optional)
